Mammoth Juiced EC Extraction Kits

Mammoth Juiced EC Grow Room Extraction Kits

Want the power to move massive amounts of air, and the power to cut energy costs at the same time? Sounds like the magic combo, right? Well, a Mammoth Juiced EC Extraction Kit allows you to pull off this nifty little trick!

Utilising a fan equipped with an energy efficient motor, the chosen size of system will only consume electricity relative to the rate of airflow, which means there’s the potential to reduce speeds and thus reduce your outlay! Compact and streamline in design, and consisting of quality ventilation products – including a manual fan controller – these killer kits represent the most affordable route to owning a complete EC extraction setup!

We’ve paired up the 6 available high pressure Mammoth Juiced EC Fans with compatible CarboAir 50 Carbon Filters – offering top class air filtration capabilities – alongside excellent flexible ducting and secure duct clips.

• Lowest priced EC extraction kits on the market
• Fantastic array of products specifically designed for growers
• Utilise energy efficient EC motor technology
• Designed to move huge volumes of air with minimum fuss
• Enable you to make considerable cost savings by lowering speeds
• 6 sizes available (100mm, 125mm, 150mm, 200mm, 250mm & 315mm)
• Handily comes with a speed controller for manual adjustments
• Compact and streamline – no space is wasted!
• Consists of quality ventilation products
• No wiring to carry out – the systems are plug and play
• Conveniently include a power lead and hanging attachments
• Covered by a 2 year manufacturer’s warranty

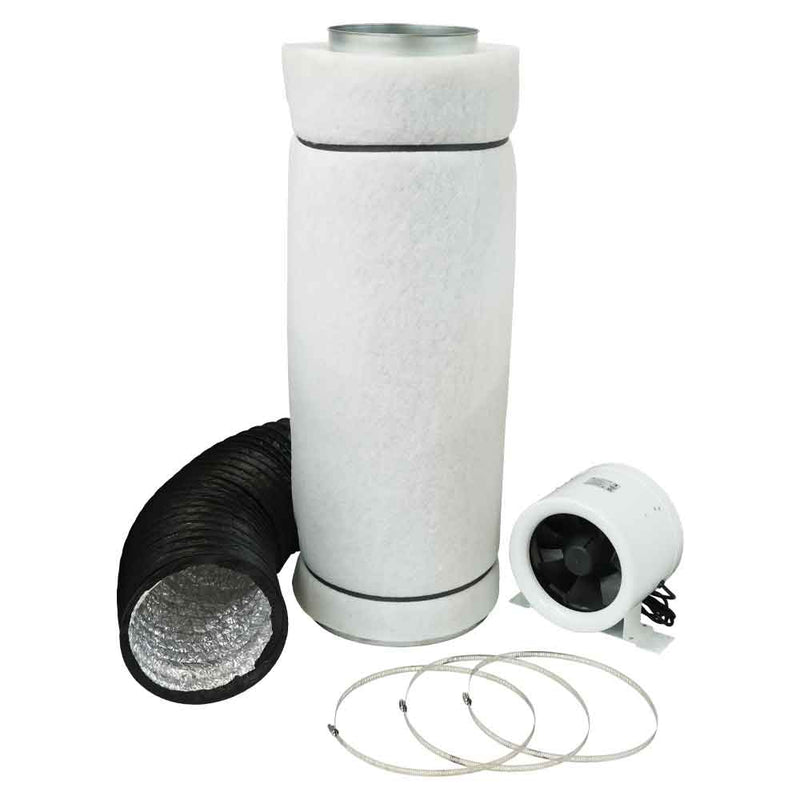

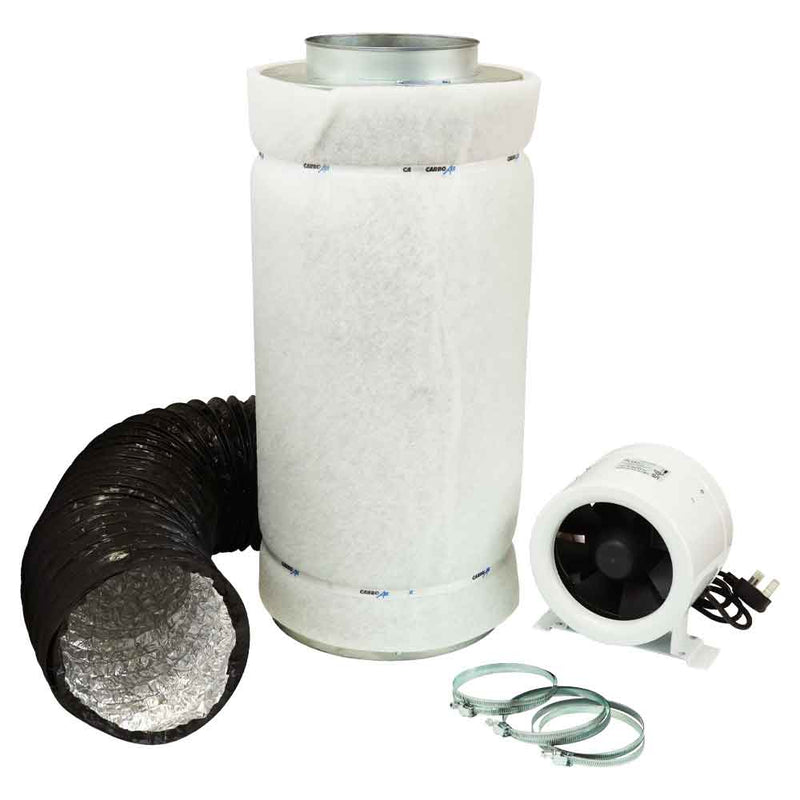

Kit Components:

1 x Mammoth Juiced Fan

1 x CarboAir 50 Filter

1 x 5m Combi Ducting

3 x Duct Clips

Fans that rely on older, AC technology will use the same amount of power at all times, even if the speed has been decreased by employing a traditional resistance based controller. EC fans – like those belonging to the Mammoth Juiced range and featured in these kits – do things differently and actually reduce energy consumption in line with any lowering of the speed. This tremendous benefit means that a 10% drop off in speed approximately leads to 10% less power used, a 20% drop off in speed approximately leads to 20% less power used, and so on. Mega savings are more than possible then, to such an extent that the equipment soon pays for itself!

Mammoth Means Quality and Reliability:

You can 100% trust Mammoth Juiced EC Fans – they feature high quality components and have been thoroughly tested! Pleasingly, no wiring is necessary because all of the products in the range come ready to use, you just plug and play! Each model includes a power lead, hanging attachments and even a variable controller, enabling you to adjust airflow without the purchase of a separate device. Topping things off and giving you complete peace of mind, Mammoth Juiced EC Fans are covered by a 2 year manufacturer’s warranty.

Technical Specifications:

100mm (4 Inch) Juiced

Air flow: 275m3/hr

Minimum noise: 56.8dBA

Speed: 5000 RPM

Pressure: 334Pa

Input power: 18W

Frequency: 50/60Hz

Motor type: EC

Voltage: 220-240V

Size: 220mm x 210mm x 190mm

Net weight: 1.1kg

125mm (5 Inch) Juiced

Air flow: 280m3/hr

Minimum noise: 54.4dBA

Speed: 5000 RPM

Pressure: 363Pa

Input power: 20W

Frequency: 50/60Hz

Motor type: EC

Voltage: 220-240V

Size: 220mm x 210mm x 190mm

Net weight: 1.1kg

150mm (6 Inch) Juiced

Air flow: 594m3/hr

Minimum noise: 60dBA

Speed: 5000 RPM

Pressure: 500Pa

Input power: 40W

Frequency: 50/60Hz

Motor type: EC

Voltage: 220-240V

Size: 225mm x 225mm x 165mm

Net weight: 1.6kg

200mm (8 Inch) Juiced

Air flow: 1205m3/hr

Minimum noise: 61.6dBA

Speed: 3800 RPM

Pressure: 520Pa

Input power: 75W

Frequency: 50/60Hz

Motor type: EC

Voltage: 220-240V

Size: 275m x 275mm x 205mm

Net weight: 2.5kg

250mm (10 Inch) Juiced

Air flow: 1808m3/hr

Minimum noise: 65dBA

Speed: X3200 RPM

Pressure: 51Pa

Input power: 150W

Frequency: 50/60Hz

Motor type: EC

Voltage: 220-240V

Size: 355m x 255m x 320mm

Net weight: 3kg

How To Set Up An Extraction Kit:

Using the items supplied in your kit, here’s how to configure an extraction system:

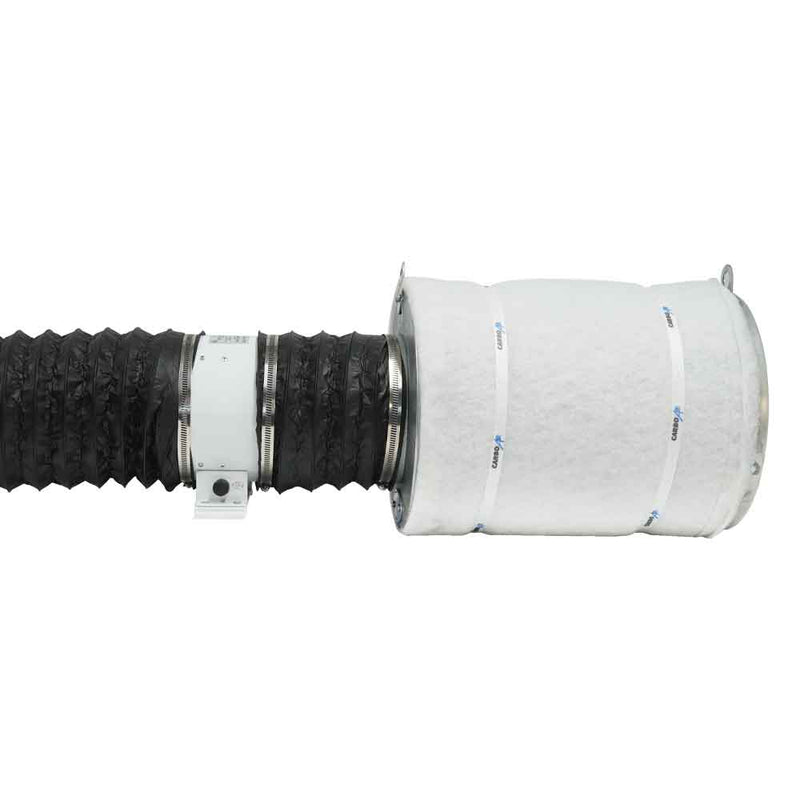

Carbon Filter > Duct Clip > Ducting (short) > Duct Clip > Extractor Fan > Duct Clip > Ducting

Plug in and turn on your fan prior to system assembly to check that the product works. We recommend initially arranging and attaching kit items on the floor, hanging up as one whole unit afterwards with chain or, for maximum convenience, Rope Ratchets (both supplied separately). Ensure that the arrow on the fan points in the opposite direction to the carbon filter – this indicates the direction of air flow (you want air to suck through the filter, not blow into it).

Tip: if you’re having trouble fitting ducting to either your fan or filter, you can use tape to hold it in place whilst you secure the duct clip.
