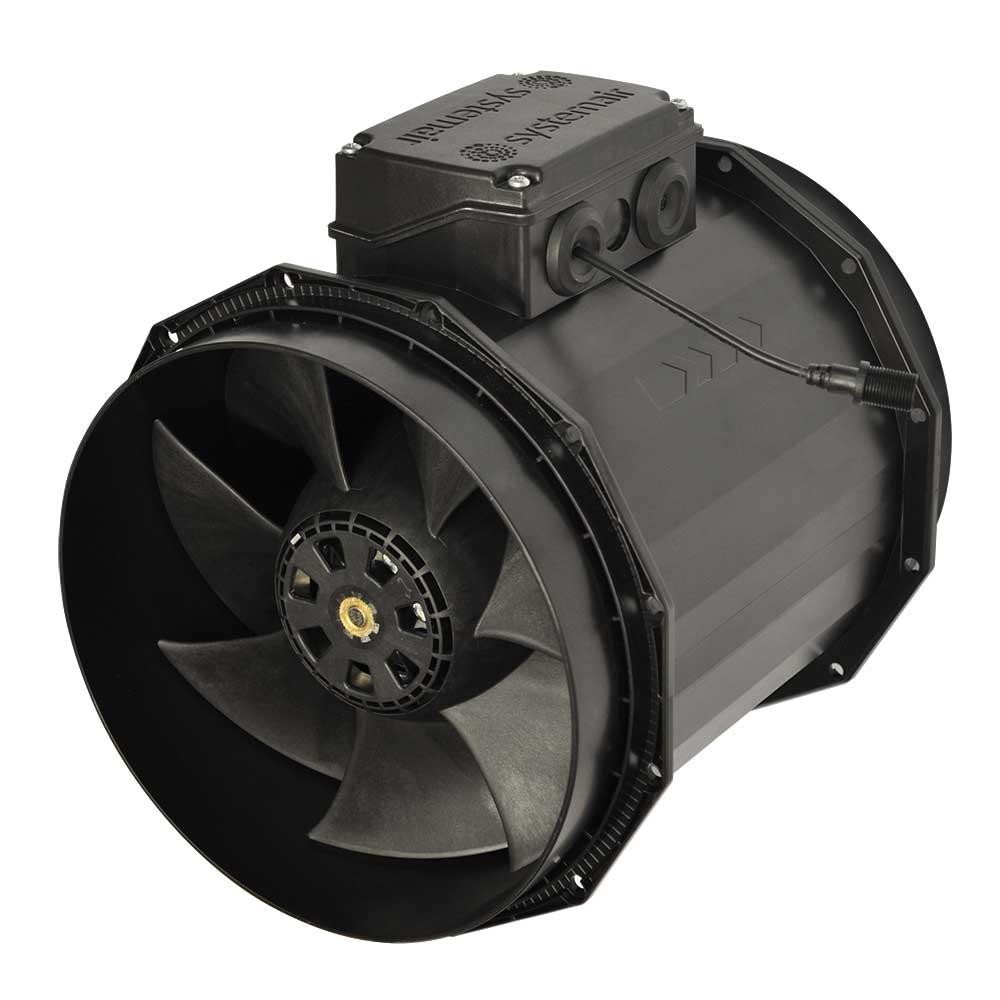

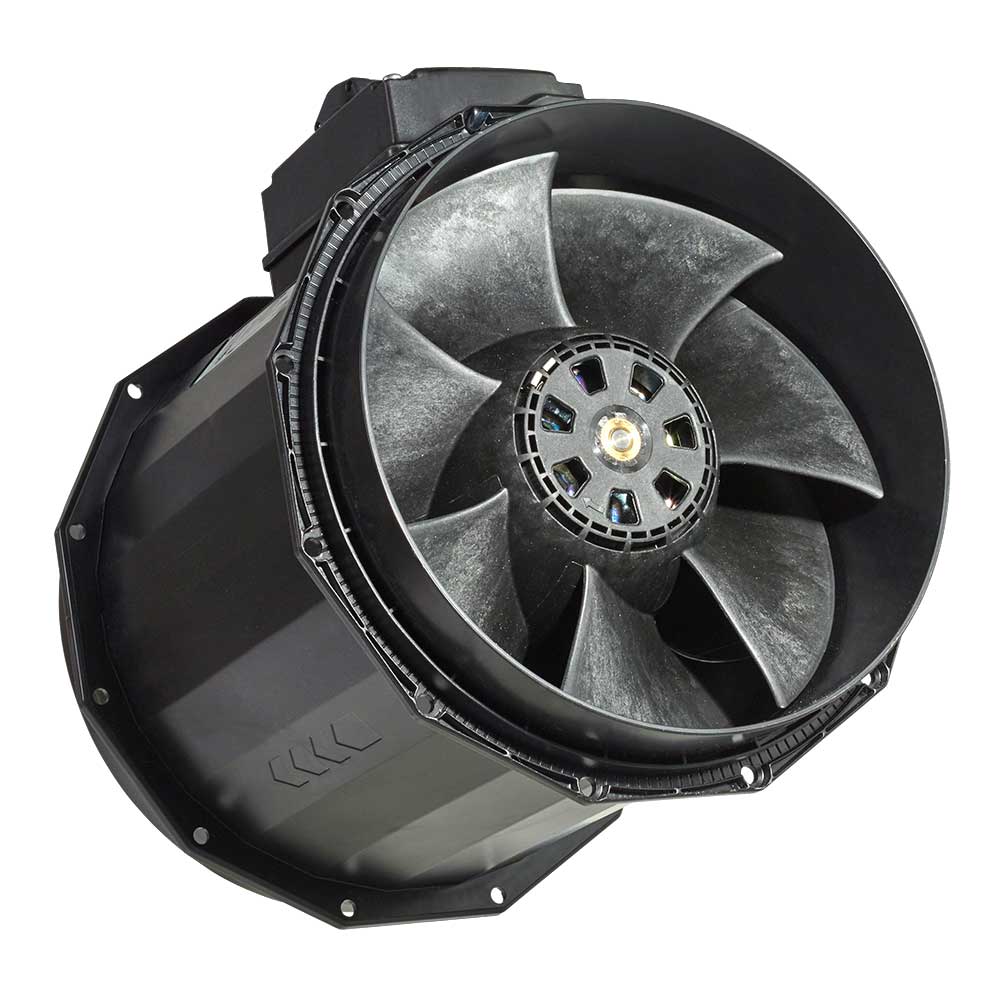

Systemair Revolution Vector EC Fans

The air flow’s amazing! You won’t get any air leaks – the fan’s casing is made out of a single piece that’s air tight. Even when used with a carbon filter they hardly lose any pressure.

There’s nearly no vibration or humming, not even on the lower speeds.

These brutes are virtually indestructible. The motor’s protected from overheating and the body is made from a unique composite material.

Each fan uses cutting edge EC technology, which combines AC & DC voltages to get a virtually silent, powerful fan that uses less energy and is easy to control.

There’s absolutely nothing else like it – this fan puts the rest to shame. It’s based on years of research and is THE ONLY fan to buy. Your extraction system will be quieter, and more efficient than ever before!

All fans MUST be connected to a G.A.S EC Fan Controller.

• Has to be used with a G.A.S EC Fan Controller – buy separately
• Other connections may be needed (see below)
• Incredible air flow

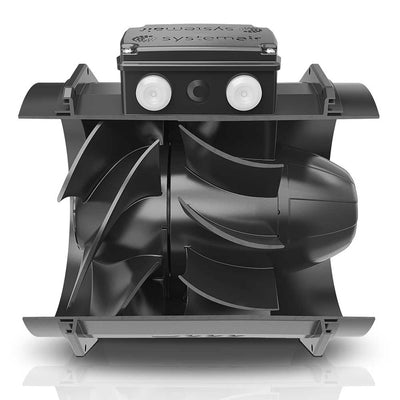

• No air leaks – fan body is just one piece
• No vibrations or humming from either the fan or controller
• Electronic motor protection – it won’t overheat
• Low power consumption – economic!
• Tidy – compact, lightweight & easy to fit
• Based on years of research, development & engineering
• Reliable with 2 year warranty included
• Mounting clamp included for easy, anti-vibration installation
• Easy, precise controls with digital display

Choose your Size:
• 150mm (6") Revolution Vector EC Fan - 781m3/hour (Matches Carbon Filter CF680)
• 200mm (8") Revolution Vector EC Fan - 1332m3/hour (Matches Carbon Filter CF1150)
• 250mm L (10") Revolution Vector EC Fan - 2077m3/hour

You Also Need:

All fans must be connected to a G.A.S EC Fan Controller. To do this, you will need to buy:

Option 1: One fan

• G.A.S EC Fan Controller only
• Available here

Option 2: Two fans to run at the same speed (intake fan is smaller than the extractor fan)

• 1 x G.A.S EC Fan Controller
• 1 x G.A.S EC Fan Y-Splitter Connector
• 1 x G.A.S EC Fan Male-Male Lead - 5m
• All available here

Option 3: Two fans to run at different speeds (intake and extractor fan are the same size)

• 1 x G.A.S EC Fan Controller
• 1 x G.A.S EC Balancer (2m signal cable included)
• 1 x G.A.S EC Fan Male-Male Lead - 5m
• All available here

Invest Now, Save Later

Trying to cut costs? Swap your RVK fan for an EC fan.

EC fans are already much cheaper to run. On top of this, they use far less energy when slowed down by a fan speed controller.

RVK fans aren’t as sophisticated when speed regulated. They always run at full power, even when dimmed down to just 1%.

Example:

RVK Fan 200 A1
• Max air flow: 800m³/h
• Max power consumption: 104W

Reduced to 10% on a controller: 10.4W

Revolution Vector 160 EC
• Max air flow: 806m³/h
• Max power consumption: 77W

Reduced to 10% on a controller: 7.7W

Though EC fans cost more to buy, their running costs are so much lower that within about a year (dependent on fan size, speed and use) you’ll have made your money back. After that it’s save, save, save. And you’ll have a much better fan!
