RVK / CarboAir 50 Professional Extraction Kits

Systemair RVK Fans no longer need to be wired up - and in this kit the IEC Cable is included.

Climate control can be easy and affordable – the German-made RVK Systemair Extractor Fans see to that.

They’re robust, powerful and quiet, yet extremely low cost. You’ll connect and install them in no time at all. It’s no wonder they’re our bestselling fan!

Believe us, they will not let you down. They’ve been tried and tested time and time again – they’re virtually indestructible with airtight casing! Yours will safely run for 24 hours a day without stopping

You won’t find a fan this good for such a low cost anywhere else. It’s an absolute must for entry-level growers! Experienced growers still swear by them.

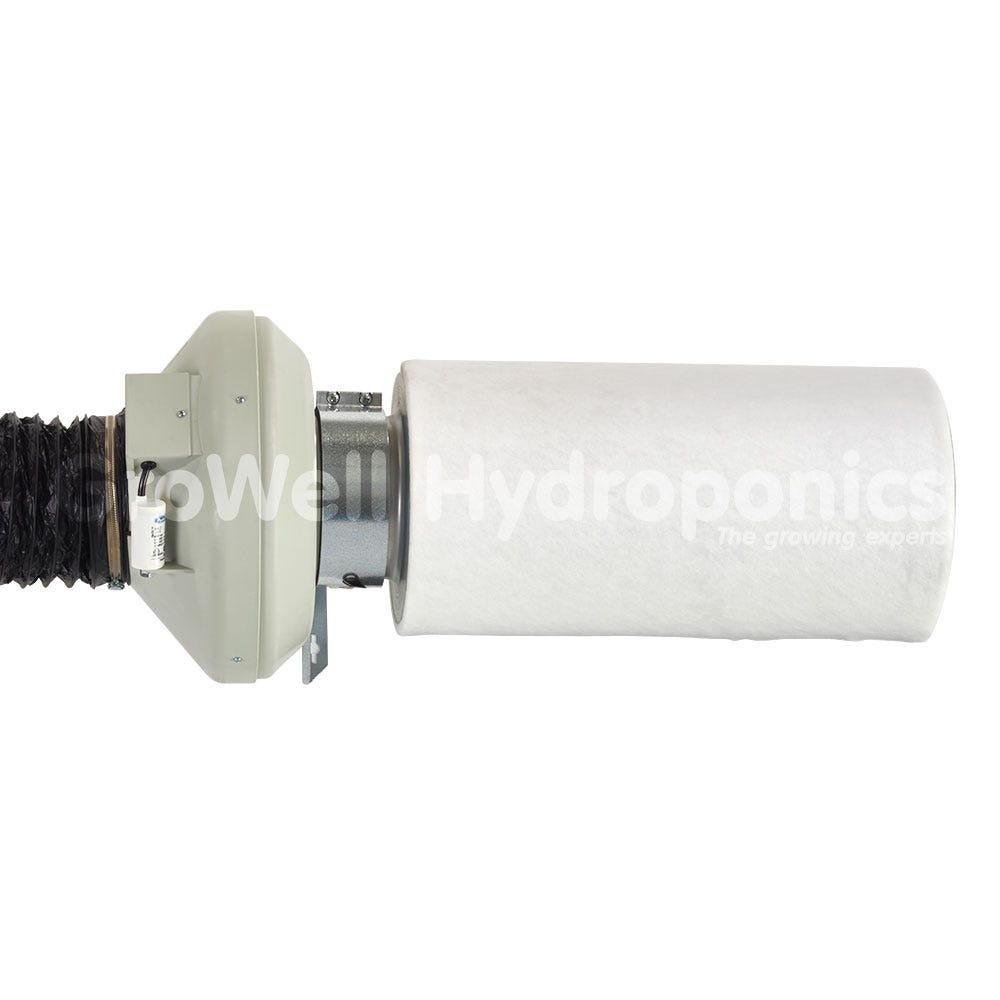

Designed in conjunction with Systemair to create the best possible filters for their popular RVK Fans, the CarboAir 50 range from Global Air Supplies offers excellent air filtration capabilities and optimal airflow.

Each of the CarboAir 50 Carbon Filters have been handmade in Europe to ensure every part of the manufacturing process falls under strict quality control, from the metalwork to the carbon itself.

Filter size and bed depth are key elements that were carefully selected to match specific RVK Fans, and the bigger, granulated carbon featured inside is able to come into contact with the air for a longer period of time to improve filtration effectiveness.

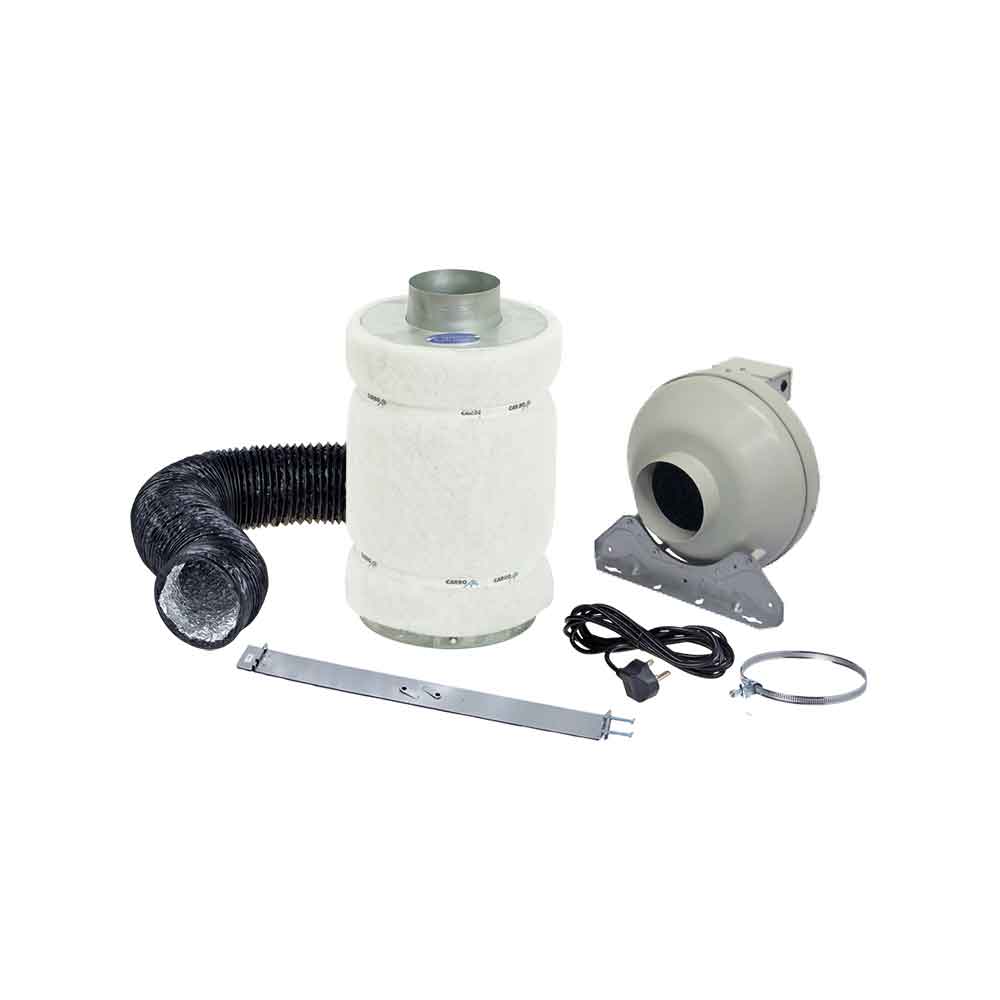

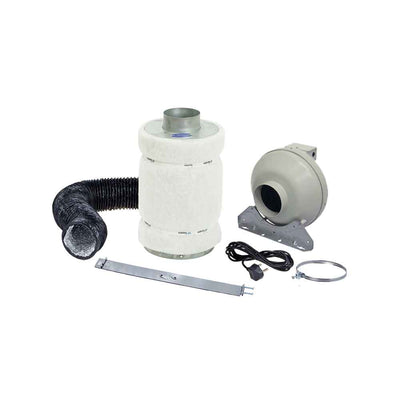

• 100mm (4”) - RVK100A1 Fan / CarboAir 50 100/330 – 184m³/hour – Up to 1 x 400W light

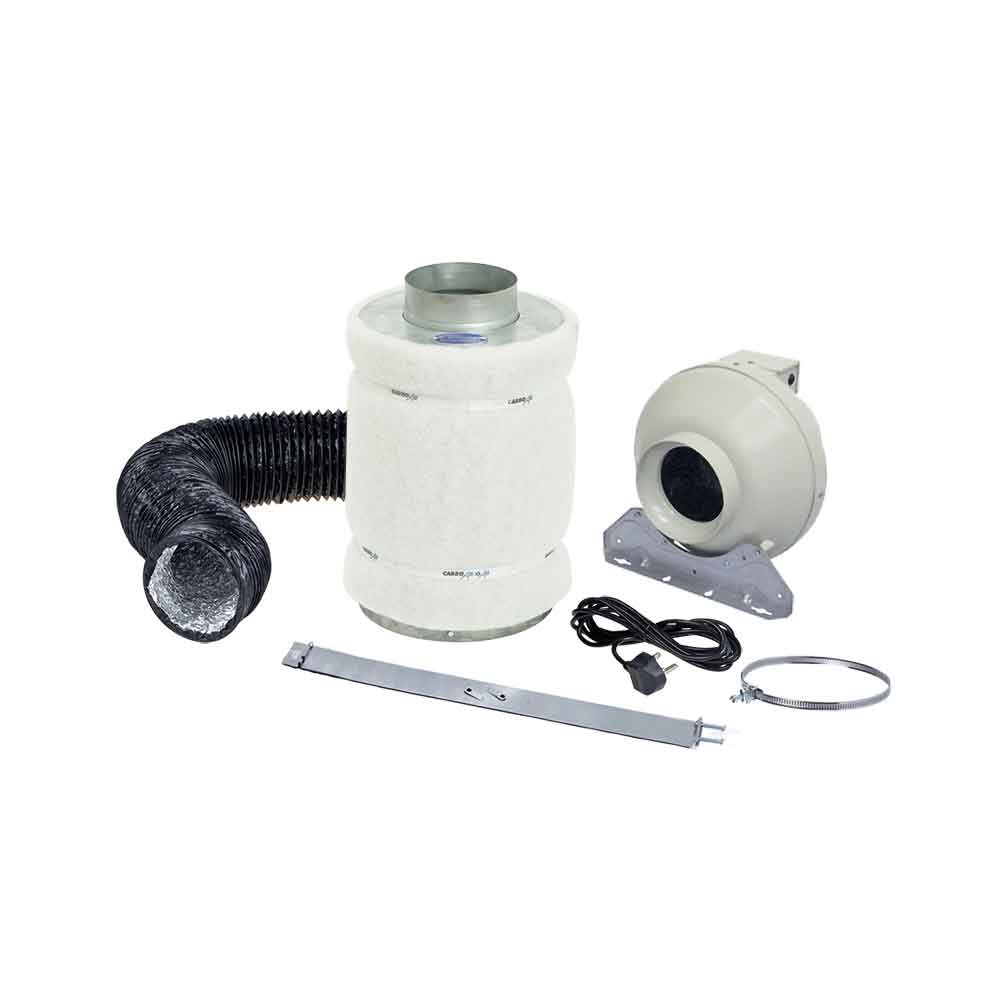

• 125mm (5”) - RVK125A1 Fan / CarboAir 50 125/330 - 220m³/hour – Up to 1 x 600W light

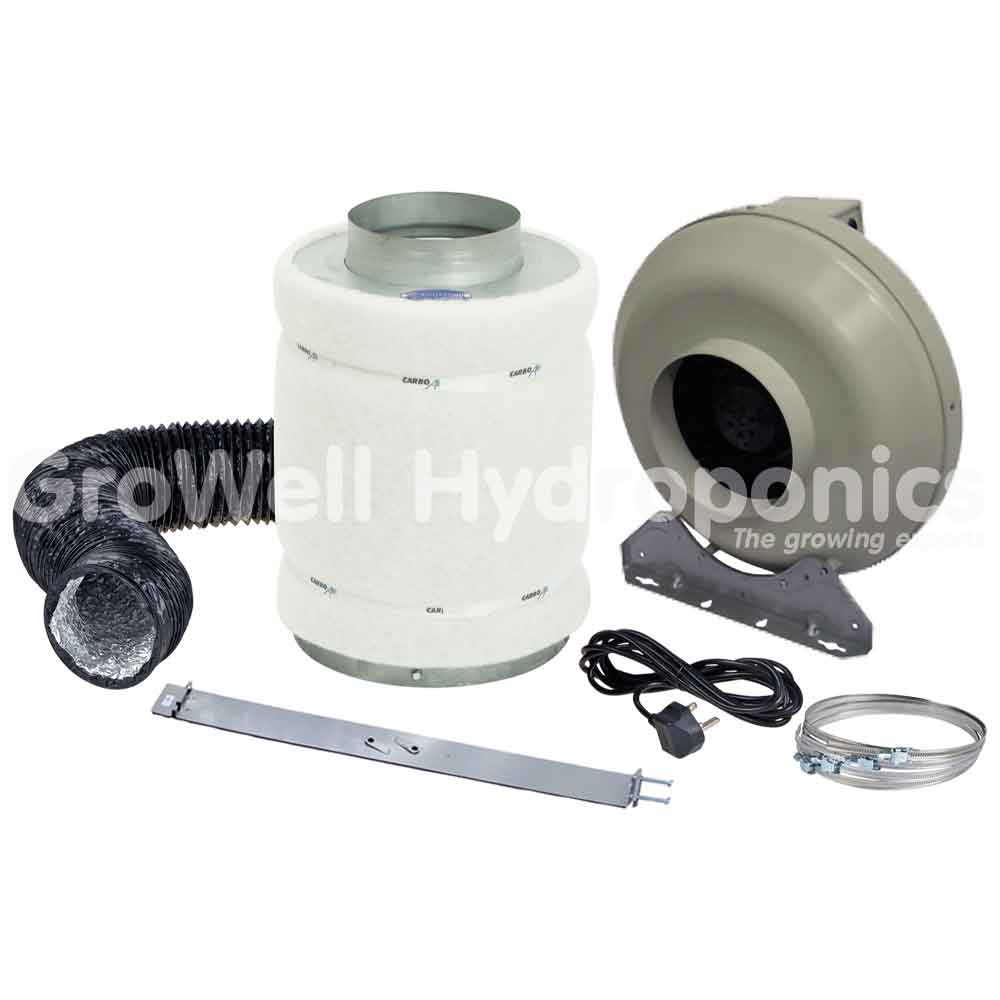

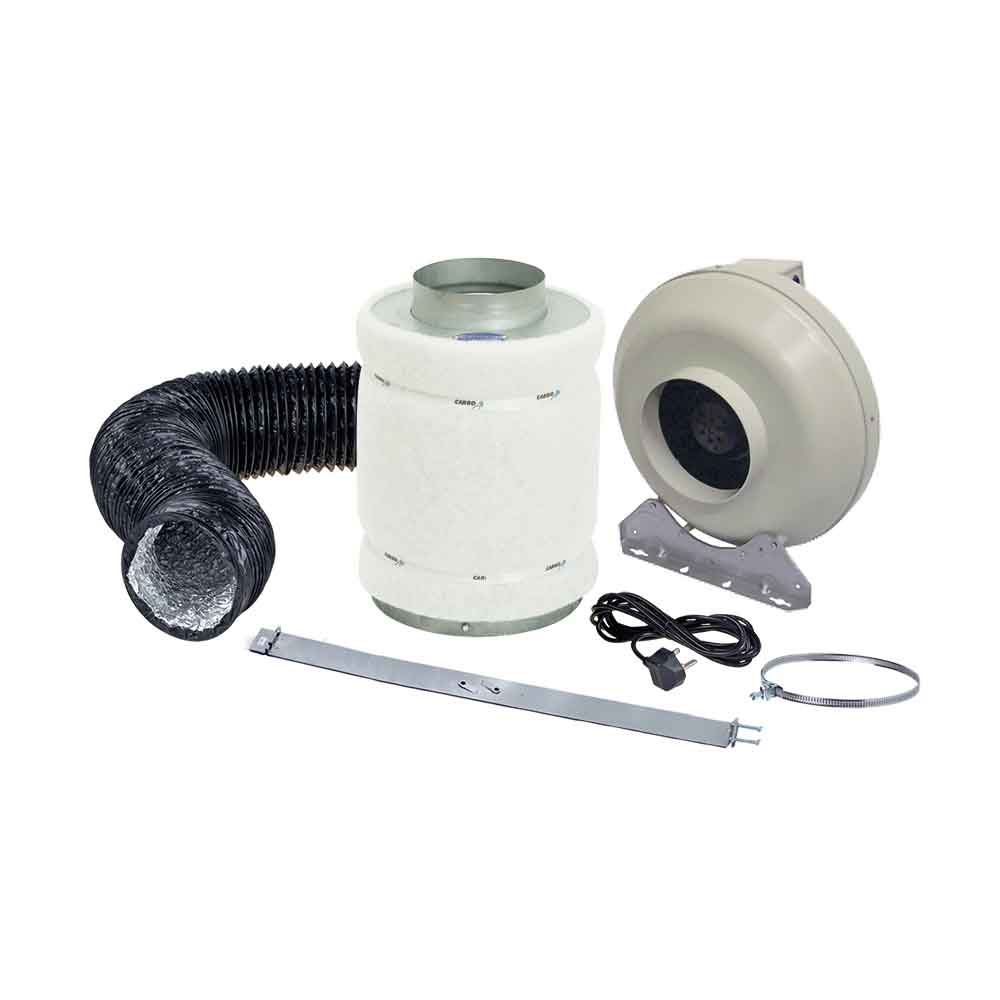

• 150mm (6”) - RVK150A1 Fan / CarboAir 50 150/330 - 428m³/hour – Up to 2 x 600W lights

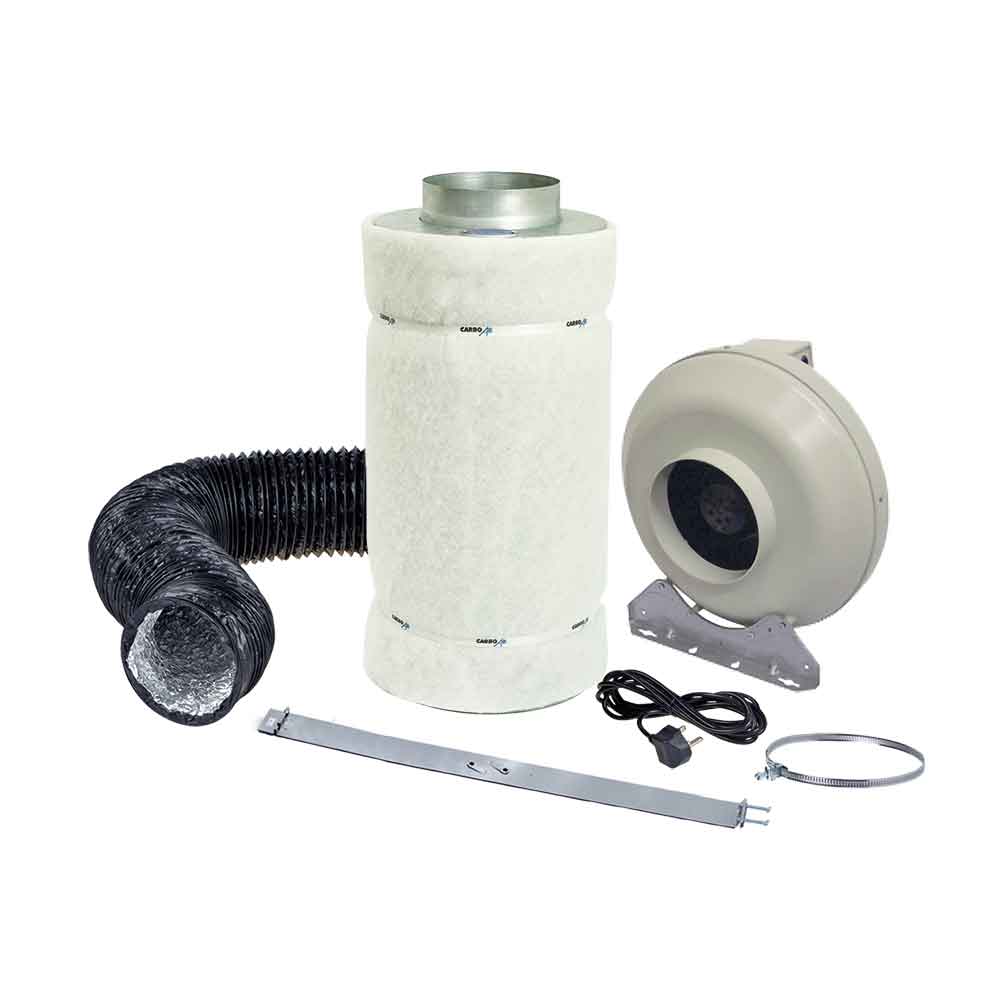

• 150mm (6”) - RVK150L1 Fan / CarboAir 50 150/660 - 720m³/hour – Up to 3 x 600W lights

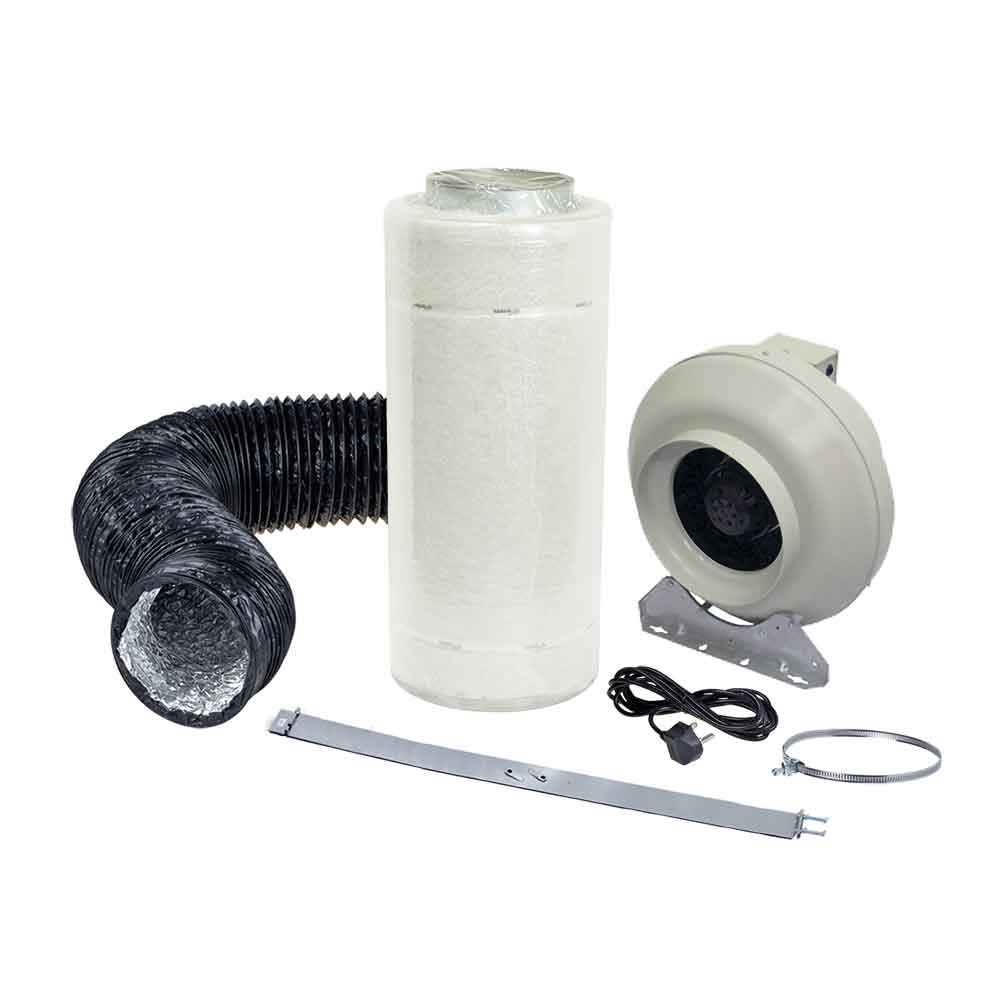

• 200mm (8”) - RVK200A1 Fan / CarboAir 50 200/660 - 796m³/hour – Up to 4 x 600W lights

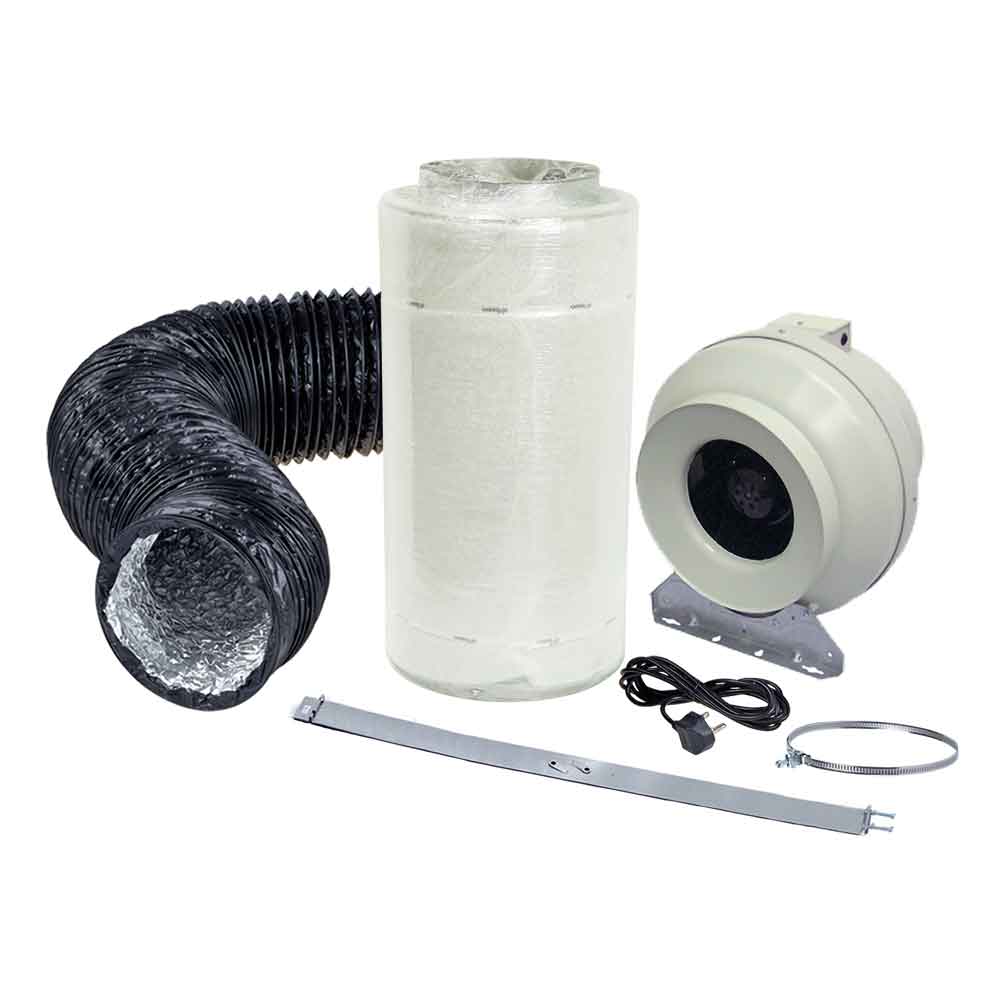

• 250mm (8”) - RVK250L1 Fan / CarboAir 50 250/660 - 1134m³/hour – Up to 4 x 600W lights

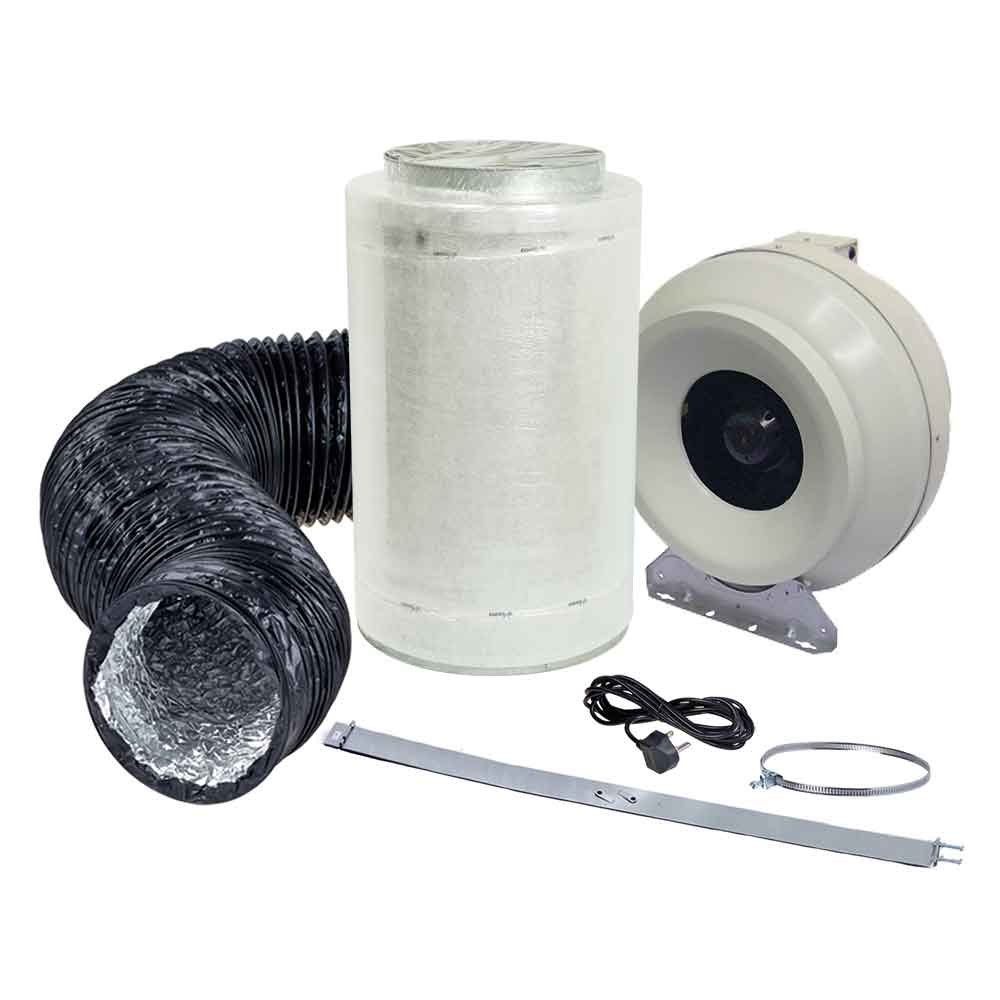

• 315mm (12.5”) - RVK315A1 Fan / CarboAir 50 315/660 - 1362m³/hour – Up to 6 x 600W lights

We Recommend

Position your filter near the ceiling of your grow room, as hot, stale air will rise.

Create intake holes near the base of your growing space so your plants get a constant flow of fresh air to your plants.

Plants consume CO₂ and release humidity. At the same time, your grow lights and other hot bits of kit are increasing your grow room temperature.

So you need to draw out hot, stale, humid, CO₂ depleted air, and replace it with fresh, cooler, CO₂ rich air.

This is what’s known as air exchange. In each system, you need:

A fan: draw air out

A filter: to remove odours before air is extracted

Ducting: to vent air where you need it

The beauty of an extraction kit is that you don’t need to worry about sizing everything up. You already know your carbon filter, fan & ducting will fit together. It’s the easiest answer to air exchange.

100mm (4") RVK100 A1 Extractor Fan - 184m3/hour

• Max. airflow: 184m3/h
• Flange size: 99mm
• Max power consumption: 29W
• Sound pressure level at 3 m: 34.5 dB(A)
• Voltage: 230V
• Frequency: 50Hz
• Phase: 1~
• Input power: (P1) 29.1 W
• Current: 0.171 A
• R.p.m: 2482
• Weight: 1.8kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: B
• Enclosure class, motor: IP44

125mm (5") RVK125 A1 Extractor Fan - 220m3/hour

• Max. airflow: 220 m3/h
• Flange size: 124mm
• Max power consumption: 29W
• Sound pressure level at 3m: 37.5 dB(A)
• Voltage: 230V
• Frequency: 50Hz
• Phase: 1 ~
• Input power (P1): 29.2W
• Current: 0.172 A
• R.p.m: 2469
• Weight: 1.8kg
• Max. temperature of transported air 70°C
• Max. temperature of transported air when speed-controlled 70°C
• Insulation class: B
• Insulation class: B
• Enclosure class, motor :IP44

150mm (6") RVK150 A1 Extractor Fan - 428m3/hour

• Max. airflow: 428m3/h
• Flange size: 149mm
• Max power consumption: 60W
• Sound pressure level at 3m: 40.6 dB(A)
• Voltage: 230V
• Frequency: 50 Hz
• Phase: 1 ~
• Input power (P1): 59.6W
• Current: 0.262 A
• R.p.m.: 2437
• Capacitor: 2 µF
• Weight: 2.7kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: B
• Enclosure class, motor: IP44

150mm (6") RVK150 L1 Extractor Fan - 720m3/hour

• Max. airflow: 720m3/h
• Flange size: 149mm
• Max power consumption: 109W
• Sound pressure level at 3 m: 44.8 dB(A)
• Voltage: 230V
• Frequency: 50 Hz
• Phase: 1 ~
• Input power (P1): 109W
• Current: 0.48 A
• R.p.m.: 2527
• Capacitor: 3 µF
• Weight : 3.2kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: F
• Enclosure class, motor: IP44 IP
• Energy class, basic unit: E
• Energy class, basic unit option: C
• ErP ready: ErP 2016/ErP 2018

200mm (8") RVK200 A1 Extractor Fan - 796m3/hour

• Max. airflow: 796 m3/h
• Flange size: 199mm
• Max power consumption: 104W
• Sound pressure level at 3 m: 42 dB(A)
• Voltage: 230V
• Frequency: 50 Hz
• Phase: 1 ~
• Input power (P1): 104W
• Current: 0.46 A
• R.p.m.: 2495
• Capacitor: 3 µF
• Weight : 3.3kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: F
• Enclosure class, motor: IP44
• Energy class, basic unit: E
• Energy class, basic unit option: B
• ErP ready: ErP 2016/ErP 2018

250mm (10") RVK250 L1 Extractor Fan - 1134m3/hour

• Max. airflow: 1134 m3/h
• Flange size: 249mm
• Max power consumption: 159W
• Sound pressure level at 3 m: 41.9 dB(A)
• Voltage: 230V
• Frequency: 50 Hz
• Phase: 1 ~
• Input power (P1): 159 W
• Current: 0.691 A
• R.p.m: 2531
• Capacitor: 4 µF
• Weight: 3.9kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: F
• Enclosure class, motor: IP44 IP
• Energy class, basic unit: E
• Energy class, basic unit option: B
• ErP ready: ErP 2016/ErP 2018

315mm (12.5") RVK315 A1 Extractor Fan - 1362m3/hour

• Max. airflow: 1362 m3/h
• Flange size: 314mm
• Max power consumption: 222W
• Sound pressure level at 3 m: 45 dB(A)
• Voltage: 230V
• Frequency: 50 Hz
• Phase: 1 ~
• Input power (P1): 222W
• Current: 0.971 A
• R.p.m.: 2696
• Capacitor: 5 µF
• Weight : 5.2 kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: B
• Enclosure class, motor: IP44 IP
• ErP ready: ErP 2018/ErP 2016
