Systemair RVK Fans no longer need to be wired up - you just require a separate IEC Lead & Plug

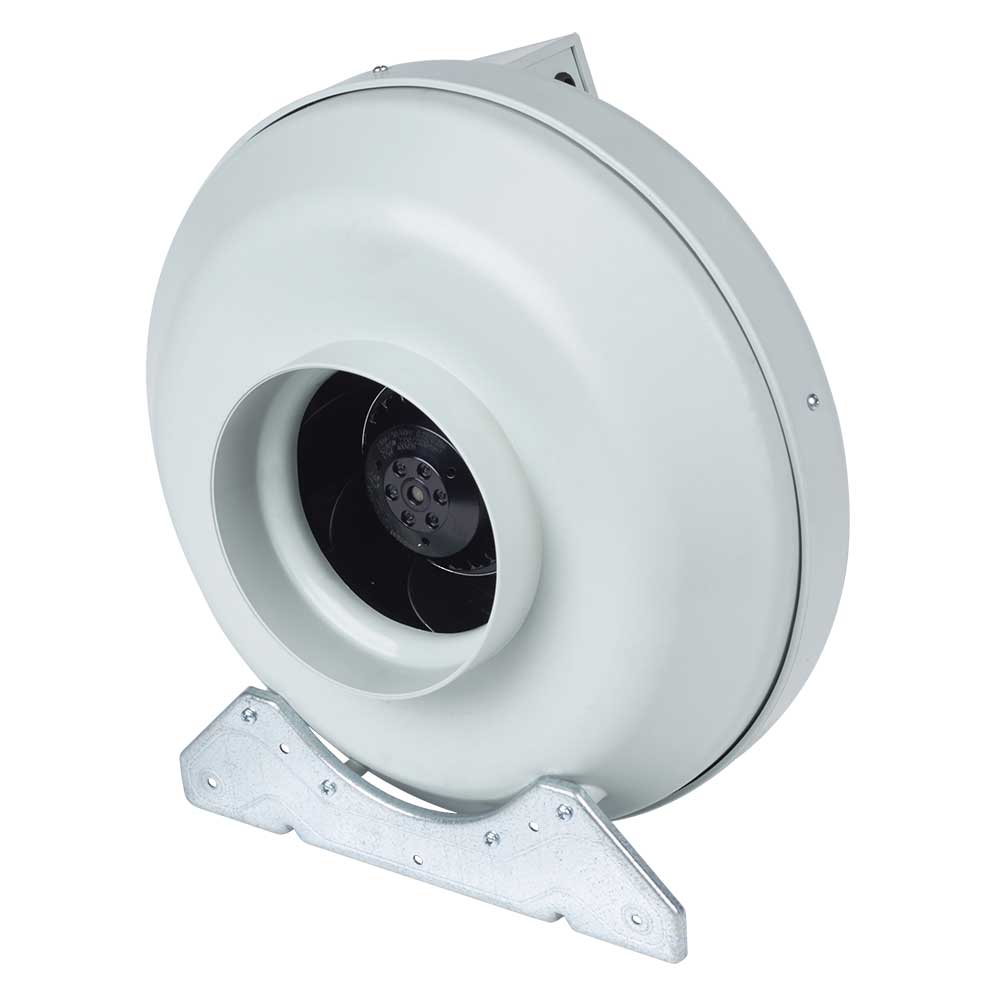

Climate control can be easy and affordable – the German made RVK Systemair Extractor Fans see to that.
They’re robust, powerful and quiet, yet extremely low cost. You’ll connect and install them in no time at all. It’s no wonder they’re our bestselling fan!
Believe us, they will not let you down. They’ve been tried and tested time and time again – they’re virtually indestructible with airtight casing! Yours will safely run for 24 hours a day without stopping
You won’t find a fan this good for such a low cost anywhere else. It’s an absolute must for entry-level growers! Experienced growers still swear by them.
To make life easy, opt for a Professional Extraction Kit - you get an RVK Extractor Fan, a CarboAir 50 Carbon Filter, 5m Power Cable, 5m Combi Ducting, a Fast Clamp and a Quick Release Duct Clip.
Please see ‘The Tech’ to work out which size fans you need.
To remove foul odours, you need to use a carbon filter with your extractor fan. Make sure your carbon filter’s spigot/flange size is the same as that in your extractor fan. Here are the carbon filters compatible with each fan:
100mm (4") RVK100 A1 Extractor Fan - 184m3/hour: CarboAir 50 100/330
125mm (5") RVK125 A1 Extractor Fan - 220m3/hour: CarboAir 50 125/330
150mm (6") RVK150 A1 Extractor Fan - 430m3/hour: CarboAir 50 150/330
150mm (6") RVK150 L1 Extractor Fan - 720m3/hour: CarboAir 50 150/660
200mm (8") RVK200 A1 Extractor Fan - 796m3/hour: CarboAir 50 200/660
250mm (10") RVK250 L1 Extractor Fan - 1134m3/hour: CarboAir 50 250/660
315mm (12.5") RVK315 A1 Extractor Fan - 1362m3/hour: CarboAir 50 315/660

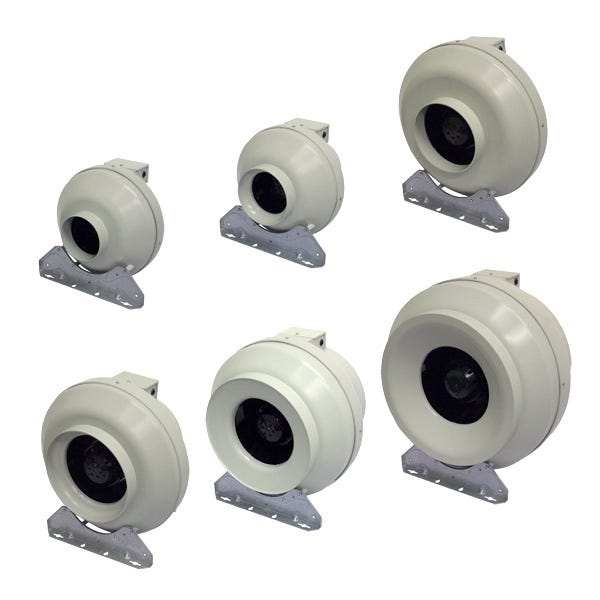

100mm (4") RVK100 A1 Extractor Fan - 184m3/hour
• Max. airflow: 184m3/h
• Flange size: 99mm
• Max power consumption: 29W
• Sound pressure level at 3 m: 34.5 dB(A)
• Voltage: 230V
• Frequency: 50Hz
• Phase: 1~
• Input power: (P1) 29.1 W
• Current: 0.171 A
• R.p.m: 2482
• Weight: 1.8kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: B
• Enclosure class, motor: IP44
125mm (5") RVK125 A1 Extractor Fan - 220m3/hour
• Max. airflow: 220 m3/h
• Flange size: 124mm
• Max power consumption: 29W
• Sound pressure level at 3m: 37.5 dB(A)
• Voltage: 230V
• Frequency: 50Hz
• Phase: 1 ~
• Input power (P1): 29.2W
• Current: 0.172 A
• R.p.m: 2469
• Weight: 1.8kg
• Max. temperature of transported air 70°C
• Max. temperature of transported air when speed-controlled 70°C
• Insulation class: B
• Insulation class: B
• Enclosure class, motor :IP44
150mm (6") RVK150 A1 Extractor Fan - 430m3/hour
• Max. airflow: 430 m3/h
• Flange size: 149mm
• Max power consumption: 60W
• Sound pressure level at 3m: 40.6 dB(A)
• Voltage: 230V
• Frequency: 50 Hz
• Phase: 1 ~
• Input power (P1): 59.6W
• Current: 0.262 A
• R.p.m.: 2437
• Capacitor: 2 µF
• Weight: 2.7kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: B
• Enclosure class, motor: IP44
150mm (6") RVK150 L1 Extractor Fan - 720m3/hour
• Max. airflow: 720m3/h
• Flange size: 149mm
• Max power consumption: 109W
• Sound pressure level at 3 m: 44.8 dB(A)
• Voltage: 230V
• Frequency: 50 Hz
• Phase: 1 ~
• Input power (P1): 109W
• Current: 0.48 A
• R.p.m.: 2527
• Capacitor: 3 µF
• Weight : 3.2kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: F
• Enclosure class, motor: IP44 IP
• Energy class, basic unit: E
• Energy class, basic unit option: C
• ErP ready: ErP 2016/ErP 2018
200mm (8") RVK200 A1 Extractor Fan - 796m3/hour
• Max. airflow: 796 m3/h
• Flange size: 199mm
• Max power consumption: 104W
• Sound pressure level at 3 m: 42 dB(A)
• Voltage: 230V
• Frequency: 50 Hz
• Phase: 1 ~
• Input power (P1): 104W
• Current: 0.46 A
• R.p.m.: 2495
• Capacitor: 3 µF
• Weight : 3.3kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: F
• Enclosure class, motor: IP44
• Energy class, basic unit: E
• Energy class, basic unit option: B
• ErP ready: ErP 2016/ErP 2018
250mm (10") RVK250 L1 Extractor Fan - 1134m3/hour
• Max. airflow: 1134 m3/h
• Flange size: 249mm
• Max power consumption: 159W
• Sound pressure level at 3 m: 41.9 dB(A)
• Voltage: 230V
• Frequency: 50 Hz
• Phase: 1 ~
• Input power (P1): 159 W
• Current: 0.691 A
• R.p.m: 2531
• Capacitor: 4 µF
• Weight: 3.9kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: F
• Enclosure class, motor: IP44 IP
• Energy class, basic unit: E
• Energy class, basic unit option: B
• ErP ready: ErP 2016/ErP 2018
315mm (12.5") RVK315 A1 Extractor Fan - 1362m3/hour
• Max. airflow: 1362 m3/h
• Flange size: 314mm
• Max power consumption: 222W
• Sound pressure level at 3 m: 45 dB(A)
• Voltage: 230V
• Frequency: 50 Hz
• Phase: 1 ~
• Input power (P1): 222W
• Current: 0.971 A
• R.p.m.: 2696
• Capacitor: 5 µF
• Weight : 5.2 kg
• Max. temperature of transported air: 70°C
• Max. temperature of transported air when speed-controlled: 70°C
• Insulation class: B
• Enclosure class, motor: IP44 IP
• ErP ready: ErP 2018/ErP 2016
Connect a Power Lead to the Fan
The fan comes with an IEC connection, you will need to use a power cable to connect it to power. Buy 5m IEC plug & Lead separately here.

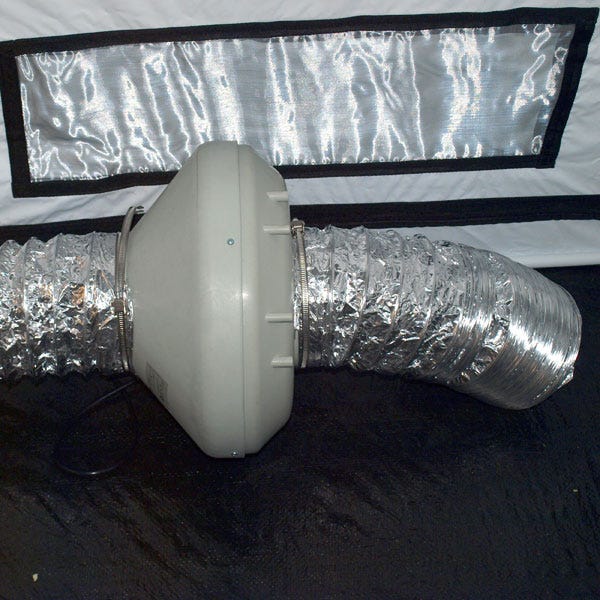

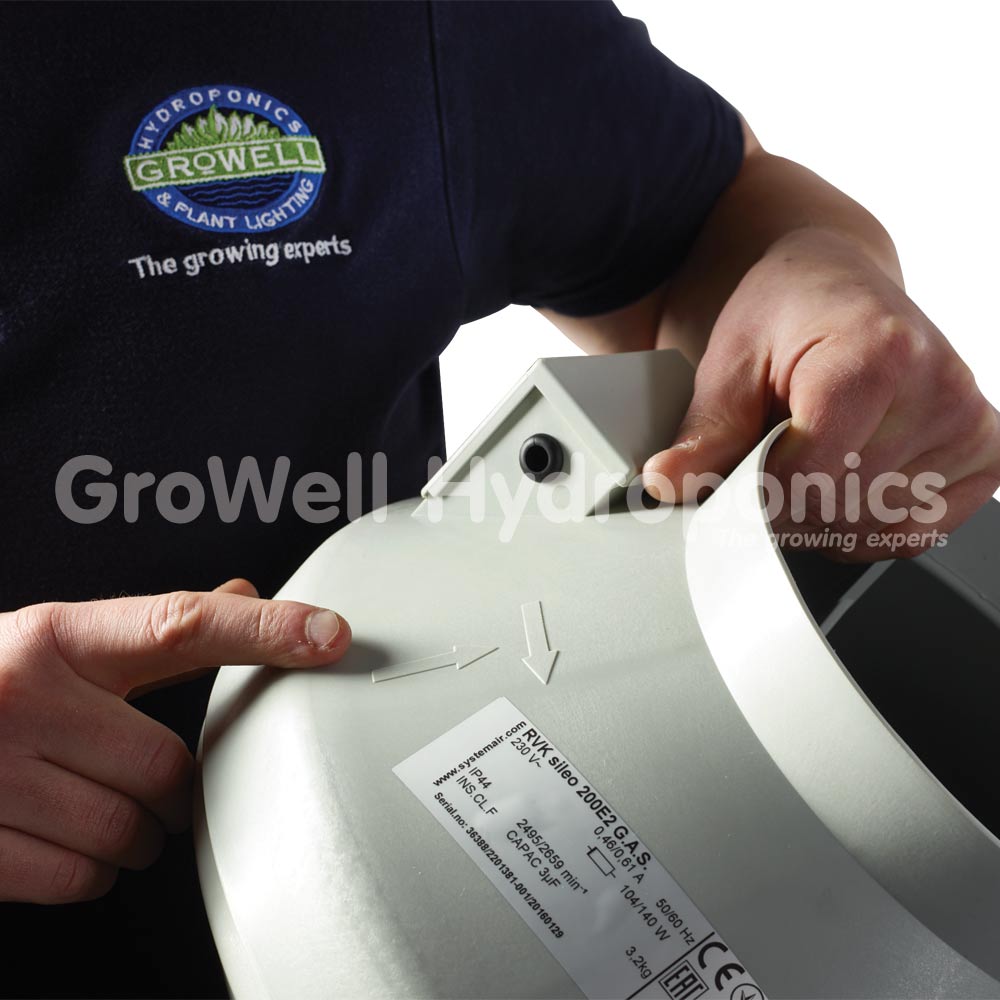

Identify the Direction of Air Flow
Air needs to travel out of your growing area for extraction, or into your growing area for intake. There’s an arrow on the fan’s case to show you which way the air travels.
Connecting up the Equipment

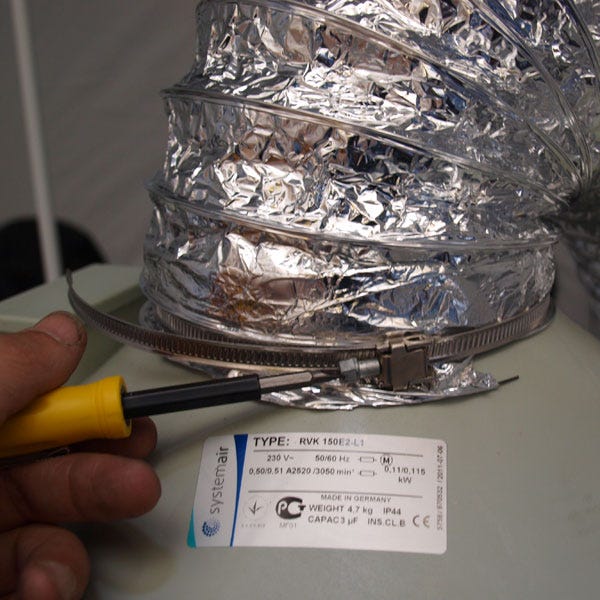

Attach a suitable length of ducting to the exhaust side of the fan, using a duct clip and then feed the ducting through the duct port in your tent, or to the area you wish to vent to.

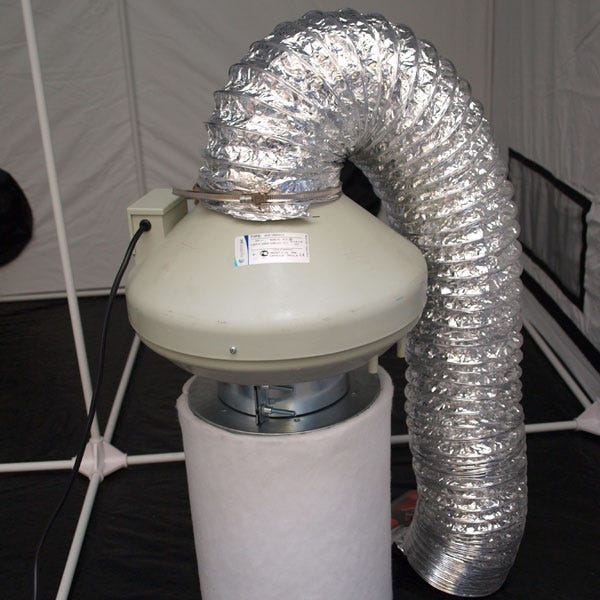

Attach the other end of the fan to your filter using a fast clamp or small piece of ducting and a duct clip.

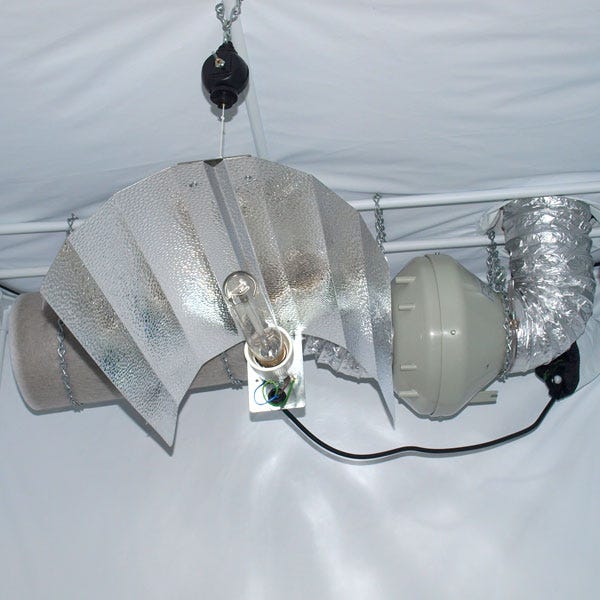

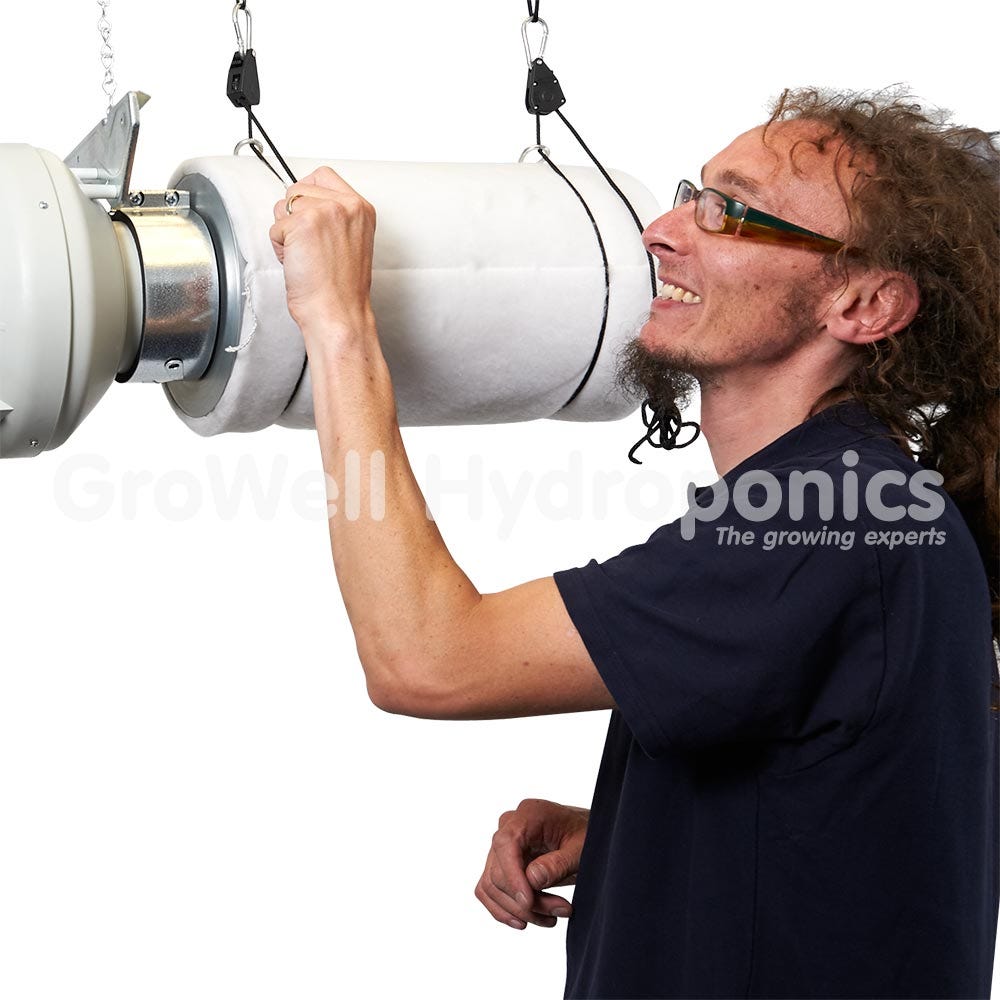

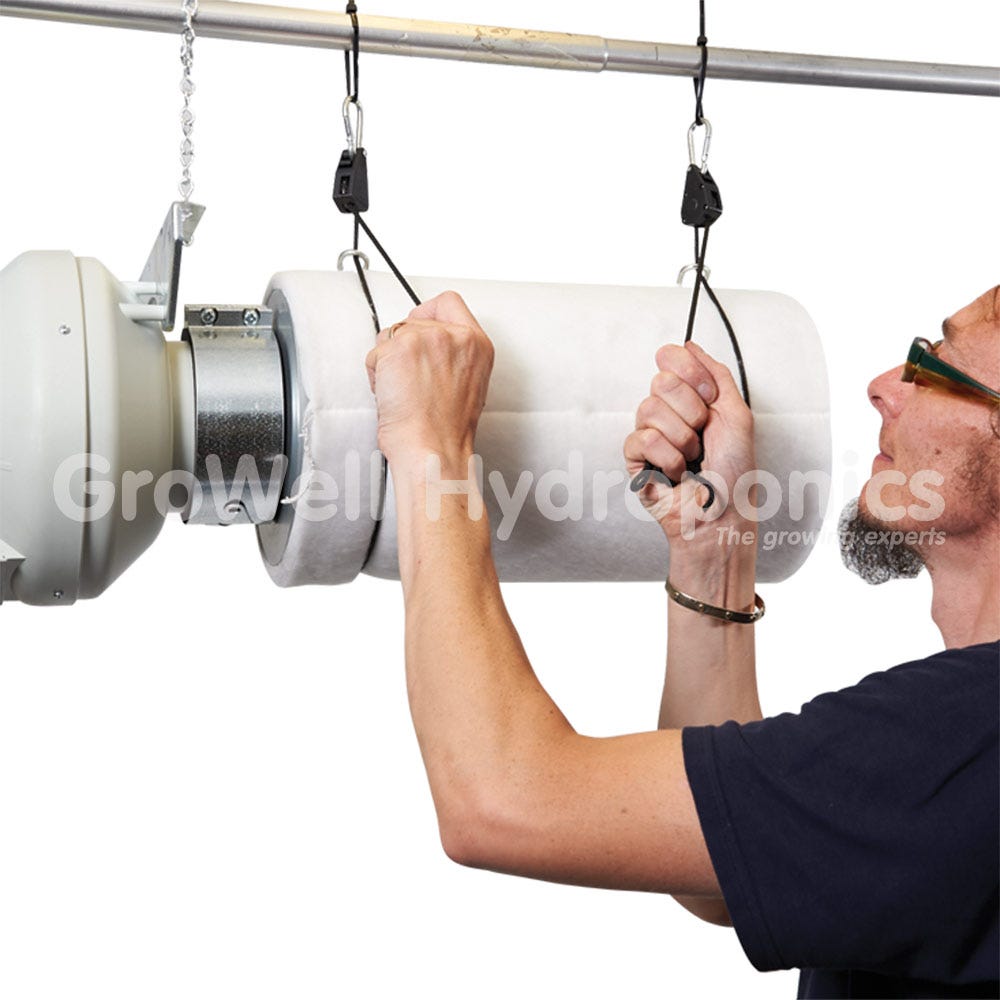

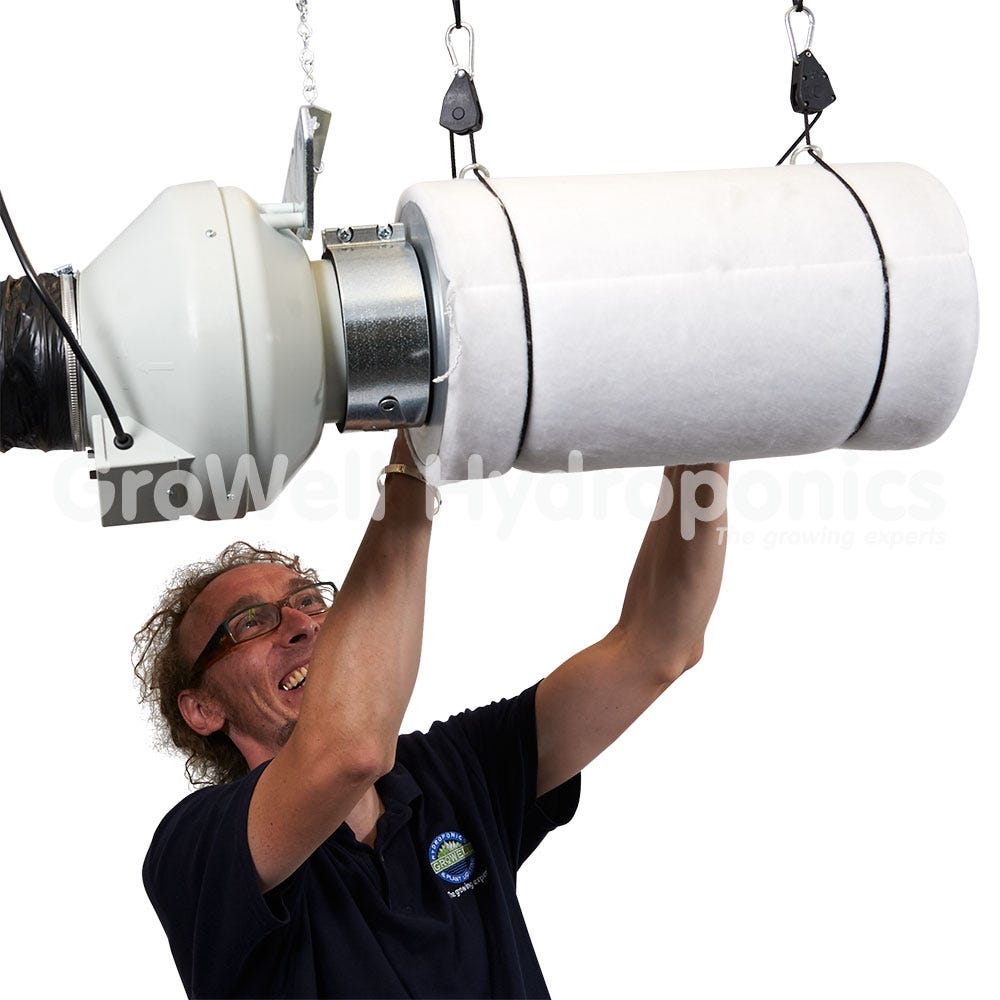

Hanging the Extraction System
It can be difficult getting the system into position on your own, but not impossible – we recommend using rope ratchets.
